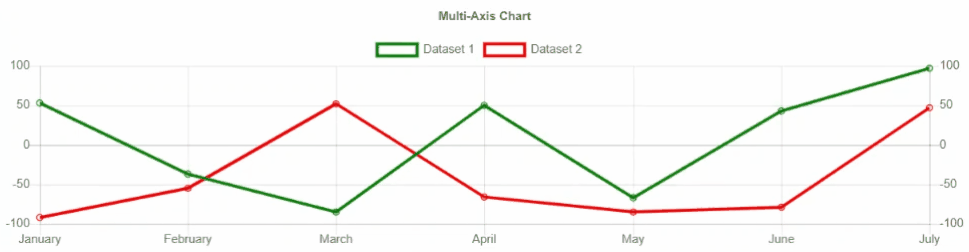

Multi-Axis Charts in Salesforce LWC

<!-- multiAxisChart.html -->
<template>
    <div class="chart-container" lwc:dom="manual"></div>
</template>

// multiAxisChart.js
    import { LightningElement, track, api } from 'lwc';
import chartjs from '@salesforce/resourceUrl/ChartJs';
import { loadScript } from 'lightning/platformResourceLoader';

/**
 * MultiAxisChart - A Lightning Web Component that renders a configurable multi-axis chart using Chart.js.
 * Supports dynamic datasets and multiple y-axes configuration.
 */
export default class MultiAxisChart extends LightningElement {
    // Chart instance reference
    chartInstance;

    // Configuration properties exposed to parent components
    @api initChart = false;          // Flag to initialize chart
    @api isChildComponent = false;   // Flag indicating if used as child component
    @api chartDataset = {};          // Dataset for the chart
    @api yAxesConfig = {};           // Y-axes configuration

    // Chart data properties
    @track monthLabels = [];         // Labels for x-axis (months)
    @track chartDataValues = [];     // Values for chart data points

    // Style configuration
    @api canvasStyle = "height: 200px !important; width: 99% !important;";

    /**
     * Lifecycle hook - Called when component is inserted into the DOM
     * Initializes the chart
     */
    connectedCallback() {
        this.initializeChart();
    }

    /**
     * Initializes and renders the Chart.js multi-axis chart
     */
    initializeChart() {
        Promise.all([
            loadScript(this, chartjs)
        ]).then(() => {
            // Clear previous chart instance if exists
            if (this.chartInstance) {
                this.chartInstance.destroy();
            }

            // Prepare chart data configuration
            const chartConfig = this.prepareChartConfig();

            // Set canvas dimensions based on component usage (parent/child)
            this.setCanvasDimensions();

            // Get canvas context and create new chart instance
            const canvasContext = this.template
                .querySelector('canvas.multi-axis-chart')
                .getContext('2d');

            this.chartInstance = new window.Chart(canvasContext, chartConfig);

        }).catch(error => {
            console.error('Error loading Chart.js:', error);
            // Note: Add proper error handling here (e.g., show toast message)
        });
    }

    /**
     * Prepares the complete configuration object for Chart.js
     * @returns {Object} Complete chart configuration
     */
    prepareChartConfig() {
        // Sample data - Replace with dynamic data from props in actual implementation
        const sampleData = {
            labels: ['January', 'February', 'March', 'April', 'May', 'June', 'July'],
            datasets: [{
                label: 'Dataset 1',
                backgroundColor: 'transparent',
                borderColor: 'green',
                yAxisID: 'y-axis-1',
                data: this.generateRandomData(7, -100, 100)
            }, {
                label: 'Dataset 2',
                backgroundColor: 'transparent',
                yAxisID: 'y-axis-2',
                borderColor: 'red',
                data: this.generateRandomData(7, -100, 100)
            }]
        };

        return {
            type: 'line',
            data: sampleData,
            options: {
                responsive: true,
                title: {
                    display: true,
                    text: 'Multi-Axis Chart'
                },
                tooltips: {
                    mode: 'index',
                    intersect: true
                },
                bezierCurve: false,
                    interaction: {
                        mode: 'index',
                        intersect: false,
                    },
                    stacked: false,
                elements: {
                        line: {
                            tension: 0
                        }
                },
                scales: {
                    yAxes: [{
                        type: 'linear',
                        display: true,
                        position: 'left',
                        id: 'y-axis-1',
                    }, {
                        type: 'linear',
                        display: true,
                        position: 'right',
                        id: 'y-axis-2',
                        gridLines: {
                            drawOnChartArea: false // Prevents grid lines for right axis
                        }
                    }],
                }
            }
        };
    }

    /**
     * Sets the canvas dimensions based on whether component is used as child
     */
    setCanvasDimensions() {
    const chartContainer = this.template.querySelector('.chart-container');
    const height = this.isChildComponent ? '400px' : '250px';
    chartContainer.innerHTML = `<canvas class="multi-axis-chart" style="height: ${height}; width: 99% !important;"></canvas>`;
}

    /**
     * Generates an array of random numbers
     * @param {number} count - Number of data points to generate
     * @param {number} min - Minimum value
     * @param {number} max - Maximum value
     * @returns {Array} Array of random numbers
     */
    generateRandomData(count, min, max) {
        return Array.from({ length: count }, () =>
            Math.round(Math.random() * (max - min) + min)
        );
    }

    /**
     * Generates random RGB color string
     * @returns {string} RGB color string
     */
    generateRandomColor() {
        const r = Math.floor(Math.random() * 255);
        const g = Math.floor(Math.random() * 255);
        const b = Math.floor(Math.random() * 255);
        return `rgb(${r}, ${g}, ${b})`;
    }
}

/* multiAxisChart.css */
.chart-container {
    position: relative;
    width: 100%;
    min-height: 300px;
}
